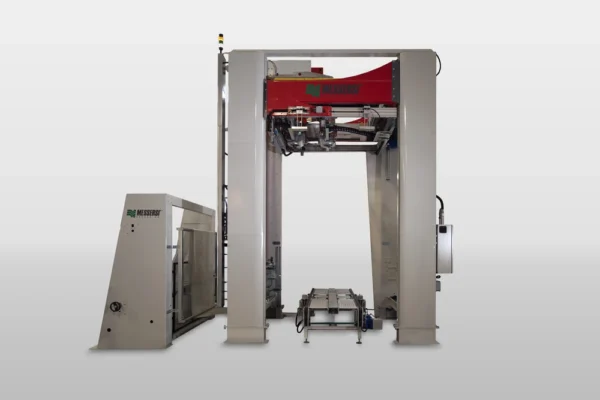

The SH45 automatic shrink wrapping machine is a combined machine which, using a single work station, performs the hooding and heat-shrinking operations of the product to be packaged. The SH45 automatic machine uses a reel of shrink film in tubular form equipped with side bellows. In the different versions, up to three film reels can be reached. The film is heat-shrunk on the product by means of a gas-fired ring oven; all functions are controlled by a PLC that manages the automatic and manual operations.
| Suitable film | Shrinkable polyethylene |
| Film thickness | 80 -200 micron |
| Electric voltage | 400 V trifase – 50 Hz |
| Installed electrical power | 7,5 kW |
| Total thermal power | 300 kW ca. |
| Gas operation | Methane or Propano-Gpl |
| Gas line pressure | 0,5 Bar |
| Gas line flow rate | 20 m3/h |
| Gas consumption | 0.20/0.25 m3/ciclo ca. |
| Noise | < 80 dB(A) secondo norma ISO 11202 |
